HMI with external touchscreen
| Specification | Value |
|---|---|
| Flash | 4 GB |
| RAM | 1 GB |
| CPU | Quad-core RISC |
| Memory Card Type | microSD x 1 |
| USB Host | USB 2.0 x 1 |

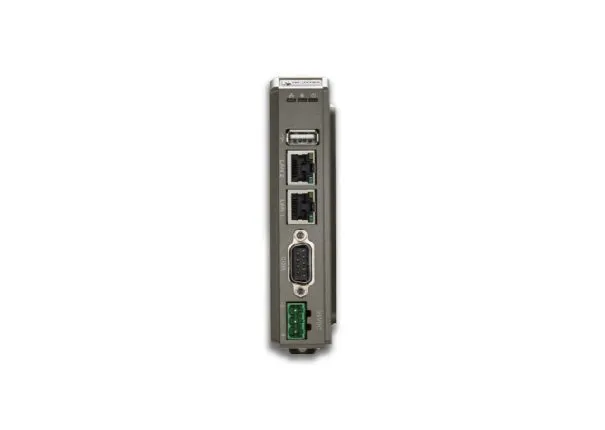

| Ethernet Port | LAN 1: 10/100/1000 Base-T x 1LAN 2: 10/100 Base-T x 1 |
| COM Port | COM1: RS-232 COM2: RS-485 2W/4W COM3: RS-485 2W |

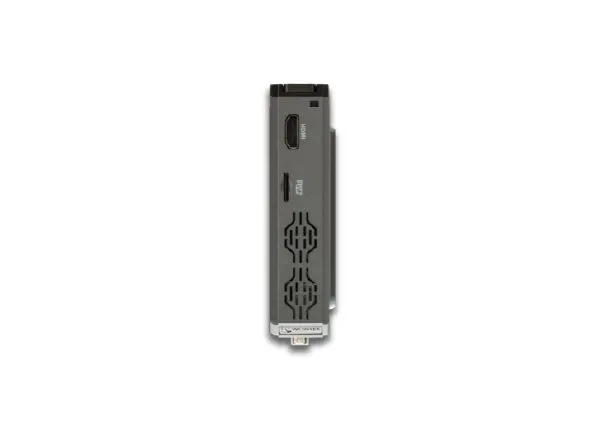

| HDMI Output | Customizable (max. resolution 1920 x 1080) |
| Recommended Resolutions(Please use these recommended screen resolutions to avoid compatibility issues.) | 720x480720x576800x6001024x7681280x7201920x1080 |
| WiFi | N/A |
| RS-485 Dual Isolation | N/A |
| CAN Bus | N/A |
| Audio Output | HDMI Audio Output |
| Input Power | 24±20% VDC |
| Power Isolation | Built-in |
| Power Consumption | 850mA@24VDC |
| Voltage Resistance | 500VAC (1 min.) |
| Isolation Resistance | Exceed 50MΩ at 500VDC |
| Enclosure | Plastic |
| Dimensions WxHxD | 29.8 x 130 x 115 mm |
| Weight | Approx. 0.24 kg |

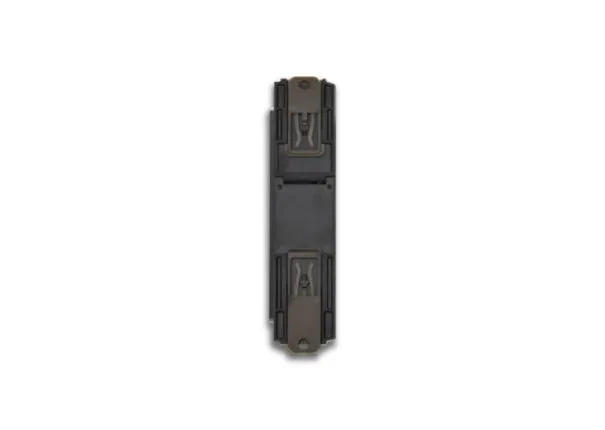

| Mount | 35mm DIN rail mounting |
| PCB Coating | Yes |
| Protection Structure | IP20 |
| Storage Temperature | -20° ~ 60°C (-4° ~ 140°F) |
| Operating Temperature | 0° ~ 50°C (32° ~ 122°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Altitude | 3,000 m |
| Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
| CE | CE marked |
| UL | cULus Listed |
| Weincloud | EasyAccess 2.0 (Optional)Dashboard (Optional) |
| CODESYS | Optional |
