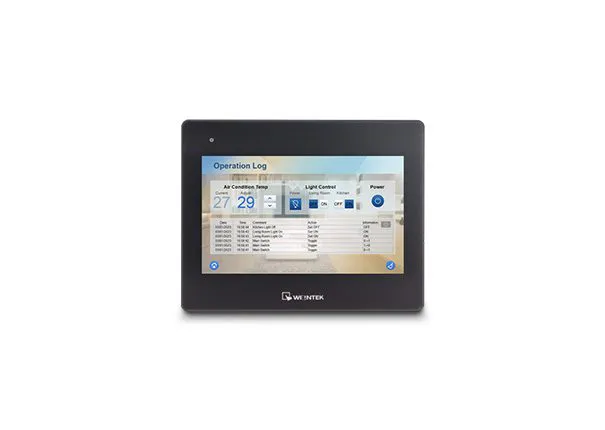

HMI with 10.1" WVA Display
| Specification | Value |
|---|---|
| Display | 10.1" WVA |
| Resolution | 1024 x 600 |
| Brightness (cd/m2) | 400 |
| Contrast Ratio | 500:1 |
| Backlight Life Time | 30,000 hrs. |
| Colors | 16.7M |
| LCD View Angle (T/B/L/R) | 85/85/85/85 |
| Pixel Pitch (mm) | 0.2175 (H) x 0.2088 (V) |
| Type | 4-wire Resistive Type |
| Accuracy | Active Area Length(X)±2%, Width(Y)±2% |
| Flash | 4 GB |
| RAM | 1 GB |
| CPU | Quad-core RISC |
| Memory Card Type | N/A |

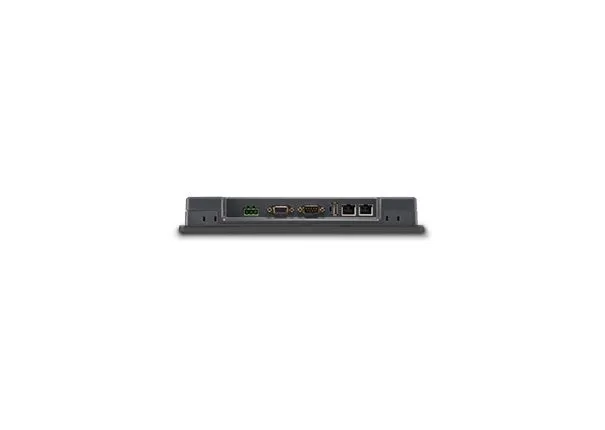

| USB Host | USB 2.0 x 1 |
| Ethernet Port | 10/100 Base-T x 2 |
| COM Port | Con.A: COM2 RS-485 2W/4W, COM3 RS-485 2WCon.B: COM1 RS-232 4W, COM3 RS-232 2W*(1) |
| WiFi | M02 WiFi Expansion Module (Optional) |
| RS-485 Dual Isolation | N/A |
| CAN Bus | N/A |
| Audio Output | N/A |
| Input Power | 24±20% VDC |
| Power Isolation | Built-in |
| Power Consumption | 420mA@24VDC |
| Voltage Resistance | 500VAC (1 min.) |
| Isolation Resistance | Exceed 50MΩ at 500VDC |
| Enclosure | Plastic |
| Dimensions WxHxD | 271 x 213 x 38 mm |
| Panel Cutout | 260 x 202 mm |
| Weight | Approx. 1.2 kg |

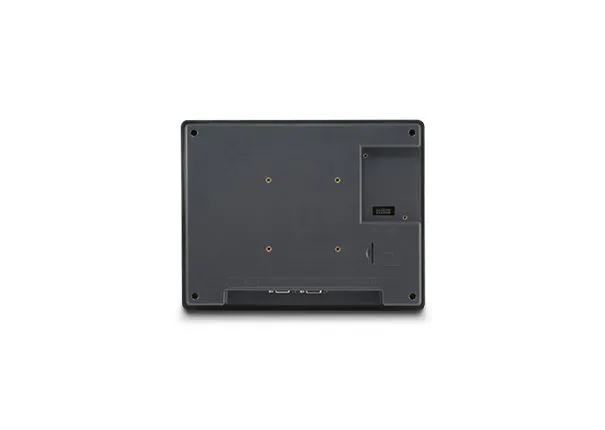

| Mount | Panel mount, VESA mount 75 x 75 mm |
| PCB Coating | Yes |
| Protection Structure | NEMA4 / IP66 Compliant Front Panel |
| Storage Temperature | -20° ~ 60°C (-4° ~ 140°F) |
| Operating Temperature | 0° ~ 55°C (32° ~ 131°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Altitude | 3,000 m |
| Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
| CE | CE marked |
| Weincloud | EasyAccess 2.0 (Optional)Dashboard (Optional) |
| CODESYS | Optional |
