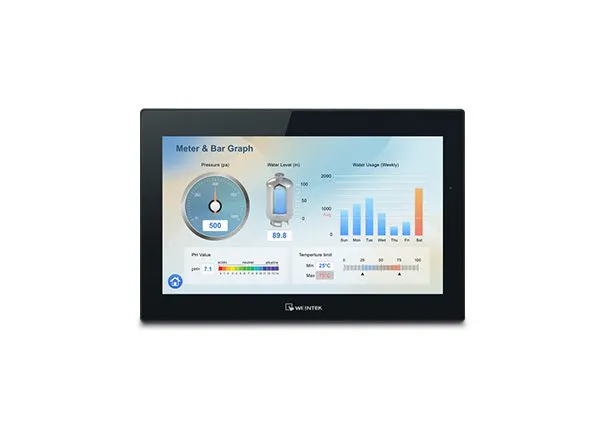

HMI with 15.6" WVA Display
| Specification | Value |
|---|---|
| Display | 15.6" WVA |
| Resolution | 1920 x 1080 |
| Brightness (cd/m2) | 300 |
| Contrast Ratio | 800:1 |
| Backlight Life Time | 30,000 hrs. |
| Colors | 16.2M |
| LCD View Angle (T/B/L/R) | 89/89/89/89 |
| Pixel Pitch (mm) | 0.17925(H) x 0.17925(V) |
| Type | Tempered Glass, Capacitive Type |
| Hardness Scale | 7H |
| Flash | 4 GB |
| RAM | 1 GB |
| CPU | Quad-core RISC |
| Memory Card Type | N/A |
| USB Host | USB 2.0 x 1 |
| Ethernet Port | 10/100 Base-T x 1 |
| COM Port | Con.A: COM1 RS-485 2W/4W, COM3 RS-485 2WCon.B: COM1 RS-232 4W, COM3 RS-232 2W*(1) |
| WiFi | N/A |
| RS-485 Dual Isolation | N/A |
| CAN Bus | N/A |
| Audio Output | Built-in Mono Speaker |
| Input Power | 24±20% VDC |
| Power Isolation | Built-in |
| Power Consumption | 0.9A@24VDC |
| Voltage Resistance | 500VAC (1 min.) |
| Isolation Resistance | Exceed 50MΩ at 500VDC |
| Enclosure | Front Bezel: Plastic, Rear Enclosure: Aluminum |
| Dimensions WxHxD | 400 x 263 x 27.6 mm |
| Panel Cutout | 384 x 247 mm |
| Weight | Approx. 1.6 kg |
| Mount | Panel mount, VESA mount 100 x 100 mm |
| PCB Coating | Yes |
| Protection Structure | NEMA4 / IP66 Compliant Front Panel |
| Storage Temperature | -20° ~ 60°C (-4° ~ 140°F) |
| Operating Temperature | 0° ~ 50°C (32° ~ 122°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Altitude | 3,000 m |
| Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
| CE | CE marked |
| UL | N/A |
| Weincloud | EasyAccess 2.0 (Optional)Dashboard (Optional) |
| CODESYS | N/A |
