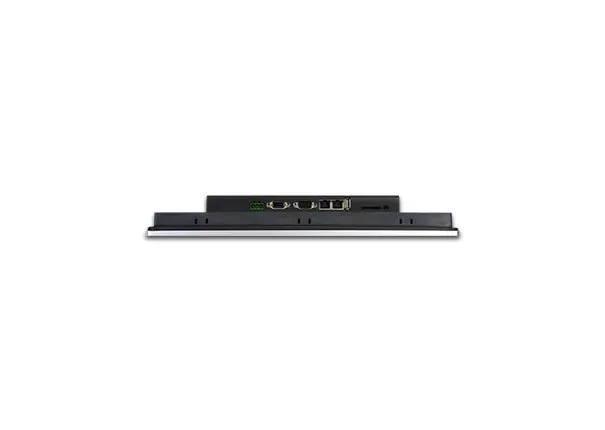

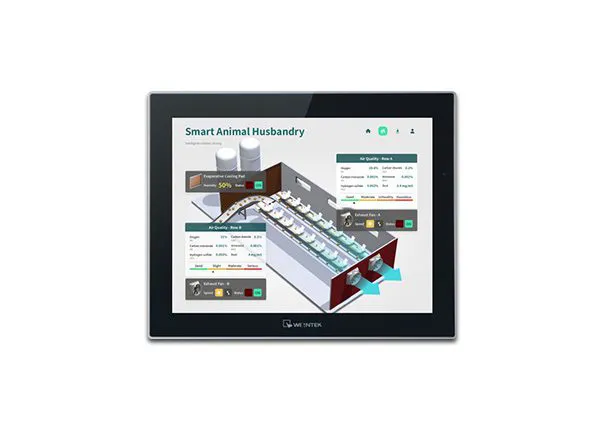

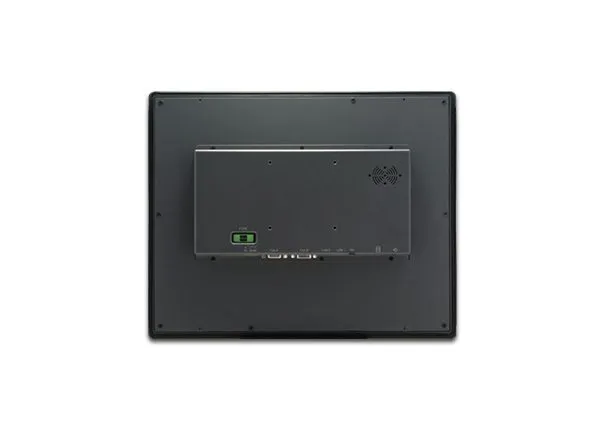

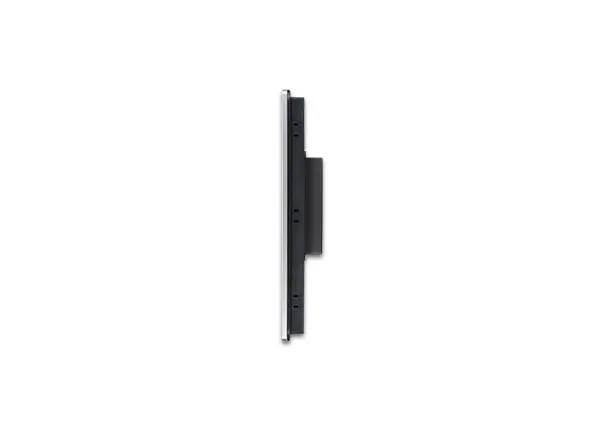

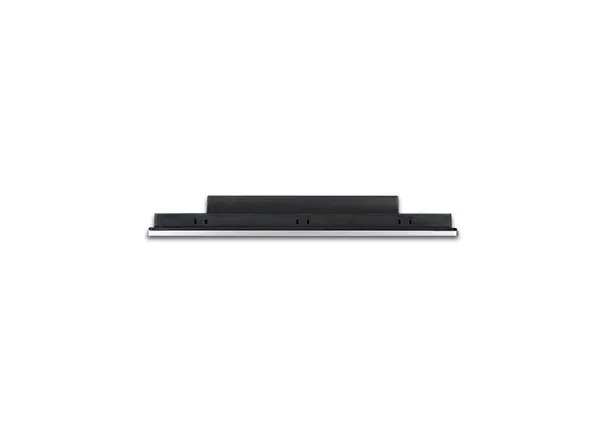

HMI with 15" WVA Display
| Specification | Value |
|---|---|
| Display | 15" WVA |
| Resolution | 1024 x 768 |
| Brightness (cd/m2) | 350 |
| Contrast Ratio | 2500:1 |
| Backlight Life Time | 70,000 hrs. |
| Colors | 16.2M |
| LCD View Angle (T/B/L/R) | 88/88/88/88 |
| Pixel Pitch (mm) | 0.297(H) x 0.297(V) |
| Type | Tempered Glass, Capacitive Type |
| Hardness Scale | 7H |
| Flash | 4 GB |
| RAM | 1 GB |
| CPU | Quad-core RISC |
| Memory Card Type | SD/SDHC |
| USB Host | USB 2.0 x 1 |
| Ethernet Port | LAN 1: 10/100/1000 Base-T x 1 LAN 2: 10/100 Base-T x 1 |
| COM Port | Con.A: COM1 RS-485 2W/4W, COM3 RS-485 2W Con.B: COM1 RS-232 4W, COM3 RS-232 2W*(1) |
| WiFi | N/A |
| RS-485 Dual Isolation | N/A |
| CAN Bus | N/A |
| Audio Output | Built-in Mono Speaker, Audio Line Out - 3.5 mm jack x 1 |
| Input Power | 24±20% VDC |
| Power Isolation | Built-in |
| Power Consumption | 1.3A@24VDC |
| Voltage Resistance | 500VAC (1 min.) |
| Isolation Resistance | Exceed 50MΩ at 500VDC |
| Enclosure | Front Bezel: Plastic, Rear Enclosure: Aluminum |
| Dimensions WxHxD | 366 x 293 x 51.5 mm |
| Panel Cutout | 352 x 279 mm |
| Weight | Approx. 2.85kg |
| Mount | Panel mount, VESA mount 75 x 75 mm |
| PCB Coating | Yes |
| Protection Structure | NEMA4 / IP66 Compliant Front Panel |
| Storage Temperature | -20° ~ 60°C (-4° ~ 140°F) |
| Operating Temperature | 0° ~ 50°C (32° ~ 122°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Altitude | 3,000 m |
| Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
| CE | CE marked |
| UL | cULus Listed |
| ATEX | N/A |
| Weincloud | EasyAccess 2.0 (Optional)Dashboard (Optional) |
| CODESYS | Optional |
