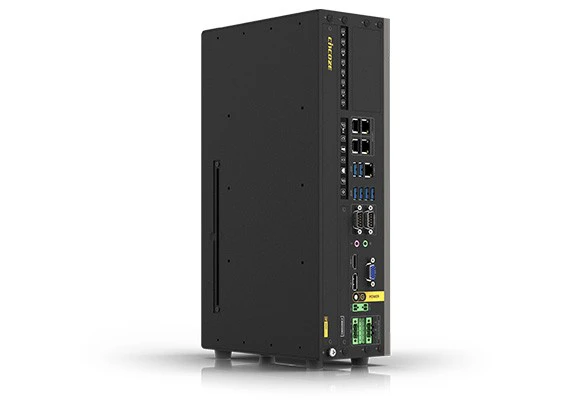

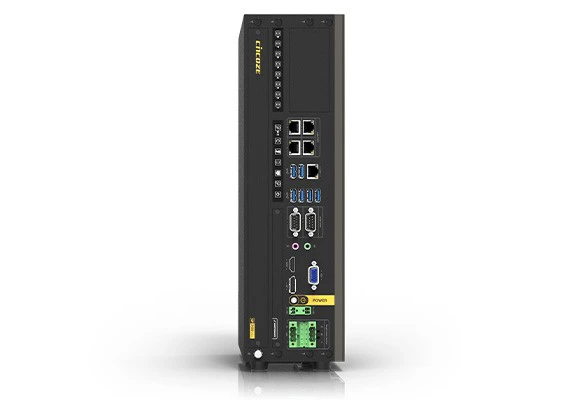

Dual Full-length GPU Expandable Computer

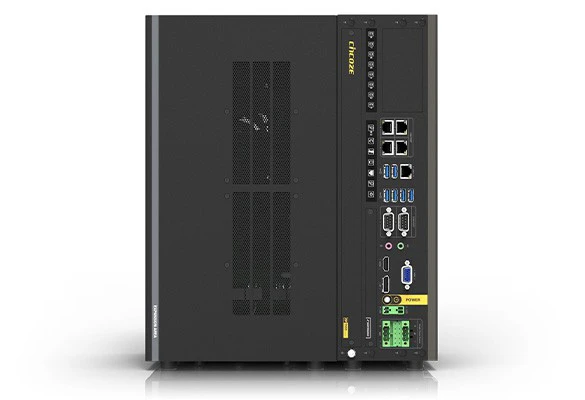

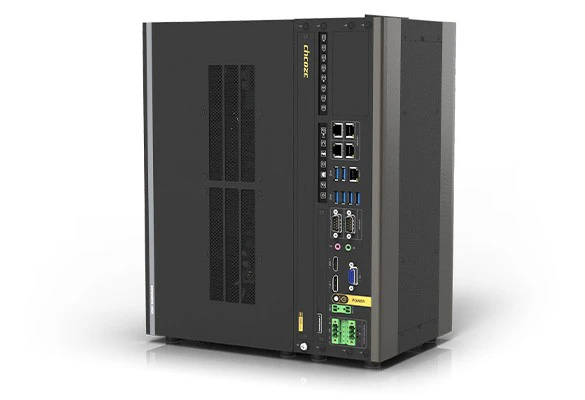

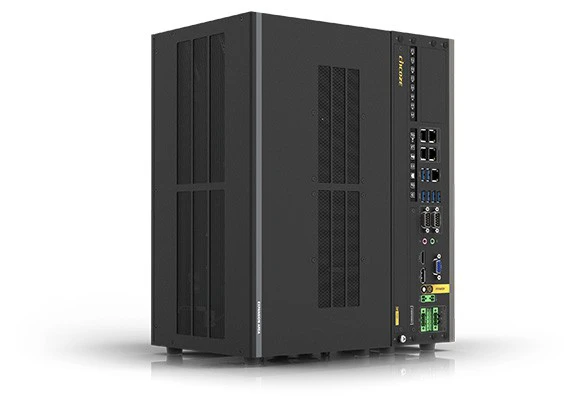

| Specification | Value |
|---|---|
| System | |
| Processor | Bartlett Lake-S Intel® Core Series 2 P-Core Only CPU Bartlett Lake-S Intel® Core Series 2 P-Core Only CPU 14th Generation Intel® Raptor Lake-S Refresh Series P-Core i9/i7/i5/i3 CPU 14th Generation Intel® Raptor Lake-S Refresh Series i9/i7/i5 Hybrid CPU 13th Generation Intel® Raptor Lake-S Series P-Core i3 Only CPU 13th Generation Intel® Raptor Lake-S Series i9/i7/i5 Hybrid CPU 12th Generation Intel® Alder Lake-S Series P-Core i5/i3/Pentium/Celeron Only CPU 12th Generation Intel® Alder Lake-S Series i9/i7 Hybrid CPU |
| Chipset | Intel R680E Chipset |
| Memory | 2x DDR5 SO-DIMM sockets, support Un-buffered and ECC Type memory, up to 96GB. - Core™ i9/i7: Support 5600/4800 MHz with Single Rank memory and 5200/4800 MHz with Dual Rank memory. - Core™ i5/i3/Pentium®/Celeron®/Intel® Processor: Support 4800 MHz. |
| BIOS | AMI BIOS |
| Graphics | |
| Graphics Engine | Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5 Integrated Intel® UHD Graphics 730: Core™ i3 Integrated Intel® UHD Graphics 710: Pentium®/Celeron® |
| Maximum Display Output | Supports Triple Independent Display |
| HDMI® | 1x HDMI® Connector (3840 x 2160@30Hz) * Verified maximum resolution: 3840x2160 @ 30Hz |
| DP | 1x DisplayPort Connector (4096 x 2304@60Hz) * Verified maximum DP resolution: 3840x2160 @ 60Hz |
| VGA | 1x VGA Connector (1920 x 1200 @60Hz |
| Audio | |
| Audio Codec | Realtek® ALC888, High Definition Audio |
| Line-out | 1x Line-out, Phone Jack 3.5mm |
| Mic-in | 1x Mic-in, Phone Jack 3.5mm |
| I/O | |
| LAN | 4x 2.5GbE LAN, RJ45 (Intel I225) • 1x 1GbE LAN, RJ45 (Intel I219) |
| COM | 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 |
| USB | 6x USB 3.2 Gen1x1 (5Gbps), Type A |
| Storage / Expansion | |
| 2.5" SSD/HDD | 4x 2.5" Front Accessible SATA HDD/SSD Bay Supporting Hot Swap Function (SATA 3.0) |
| (Up to 15mm in Height) | |
| M.2 M Key Socket | 1x M.2 Key M Type 2280 Socket (PCIe Gen 4x4 / SATA), Support Storage/Add-on Card Expansion M.2 E Key Socket; 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x2 / USB2.0), Support Wireless/Bluetooth/Storage/ Intel CNVi Module Expansion |
| M.2 B Key Socket | 1x M.2 Key B Type 3052/3042 Socket (PCIe Gen 3x2 / USB3.2 Gen 2x1 / SATA), Support 5G/GNSS/ Storage/Add-on card Expansion 1x M.2 Key B Type 2280 Socket (PCIe Gen 3x1 / USB2.0), Support GNSS/Add-on card Expansion |
| SIM | 2 x Front Accessible SIM Socket |
| PCIe | Optional GPU Expansion Box - 1 x PCIe x 16 Slot ( PCIe x 16 Signal ) for GPU Card + 1 x PCIe x 4 Slot (Max. 25W) - 2 x PCIe x 16 Slot ( PCIe x 8 Signal ) for GPU Card + 1 x PCIe x 4 Slot (Max. 25W) + 1 x PCIe x 1 Slot (Max. 25W) * Single-GPU configuration: 300 W @ 24 VDC * Dual-GPU configuration: 500 W @ 24 VDC or 600 W @ 48 VDC (each GPU ≤ 300 W) * GPU Card Dimension (W x D x H): 138 x 328 x 64 mm |
| CMI (Combined Multiple I/O) Interface | 1 x High Speed CMI Interface for optional CMI Module Expansion 1 x Low Speed CMI Interface for optional CMI Module Expansion |
| CFM (Control Function Module) Interface | 1x CFM IGN Interface for optional CFM-IGN Module Expansion 1x CFM PoE Interface for optional CFM-PoE Module Expansion |
| Other Function | |
| RAID | RAID 0 / 1 / 5 / 10 |
| FAN | 2x Fan Kits ( Air-flow isolated from the electronics ) |
| Power Ignition Sensing | Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module) |
| Clear CMOS Switch | 1x Clear CMOS Switch |
| Reset Button | 1x Reset Button |
| Instant Reboot | Support 0.2sec Instant Reboot Technology |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset |
| Antenna Holes | 7x Antenna Holes |
| Power | |
| Power Button | 1x ATX Power On/Off Button |
| Power Input Voltage | 9 - 48VDC, Single Power Input |
| Connector | 2x 3-pin Terminal Block, Each Terminal Block Current Limitation is 15A - Dual power connect must be used at the same time due to 15A current limitation at each power connector. |
| Power Mode Switch | 1x AT/ATX Mode Switch |
| Remote Power On/Off | 1x Remote Power On/Off, 2-pin Terminal Block |
| Remote Power LED | 1x Remote Power LED, 2-pin Terminal Block |
| Max. Power Consumption | 35W CPU: 201.05W 65W CPU: 306.48W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during burn-in testing. |
| Inrush Current (Peak) | 35W CPU: 9.221A@24V 65W CPU: 8.976A@24V |
| Operating System | |
| Windows | Windows®11, Windows®10 |
| Linux | Ubuntu Desktop 22.04 LTS |
| Mechanical | |
| Dimension ( W x D x H ) | 105 x 195 x 370 mm 209 x 195 x 370 mm (with GEB-3301) 305 x 195 x 370 mm (with GEB-3601) |
| Weight Information | 7.7 Kg 10.9 kg (with GEB-3301) 12.9 kg (with GEB-3601) |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal |

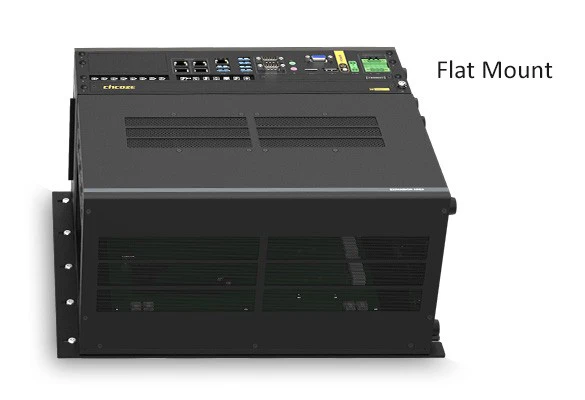

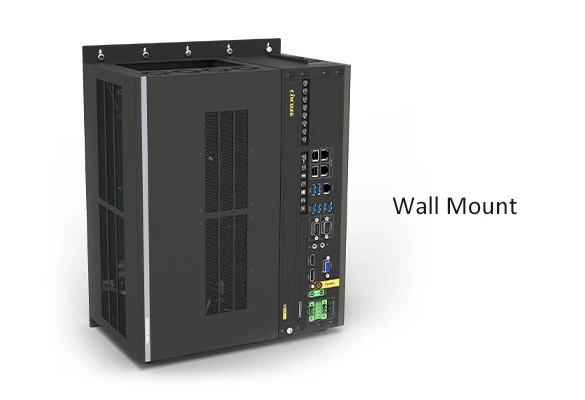

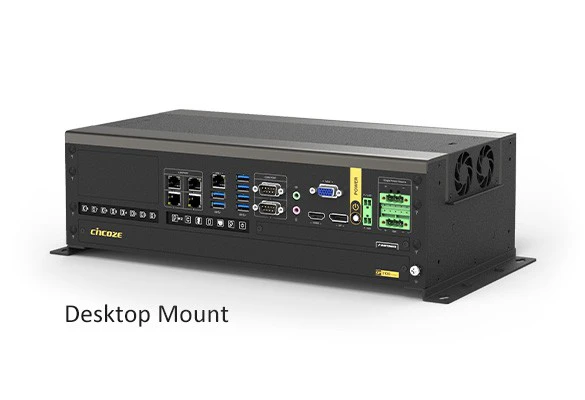

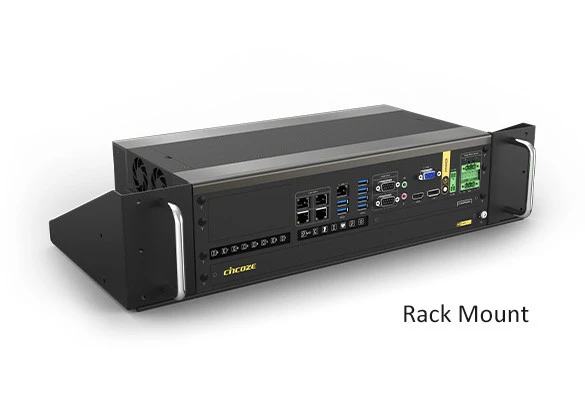

| Mounting | Versatile Mounting Methods (Tower Stand / Desktop / 19”Rack / Flat / Wall Mount) |
| Physical Design | Jumper-less Design Unibody Design |
| Reliability & Protection | |
| Reverse Power Input Protection | Yes |
| Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover |
| Over Current Protection | 30A |
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation |
| MTBF | 432,065 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 |
| Environment | |
| Operating Temperature | 35W TDP Processor: -40°C to 70°C (-40°F to 158°F) 45W TDP Processor : -40°C to 60°C (-40°F to 140°F) 65W TDP Processor : -40°C to 60°C (-40°F to 140°F) * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) |
| Shock | MIL-STD-810H |
| Vibration | MIL-STD-810H |
| EMC | CE, UKCA, FCC, ICES-003 Class A EN 50155 (EN 50121-3-2 Only) E-mark |
| EMI | CISPR 32 Conducted & Radiated: Class A EN/BS EN 50121-3-2 Conducted & Radiated: Class A EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A EN/BS EN61000-3-3 Voltage fluctuations & flicker FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A |
| EMS | EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV EN/IEC 61000-4-5 Surges: AC Power: 2 kV EN/IEC 61000-4-6 CS: 10V EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz |
| Fire Protection | EN 45545-2 |
| Safety | UL, cUL , CB, IEC, EN 62368-1 |
| File Name | Release Date | Download |
|---|---|---|
| Datasheet_GP-3100.pdf | — | Login required |
