LANNER / RACK MOUNT PC

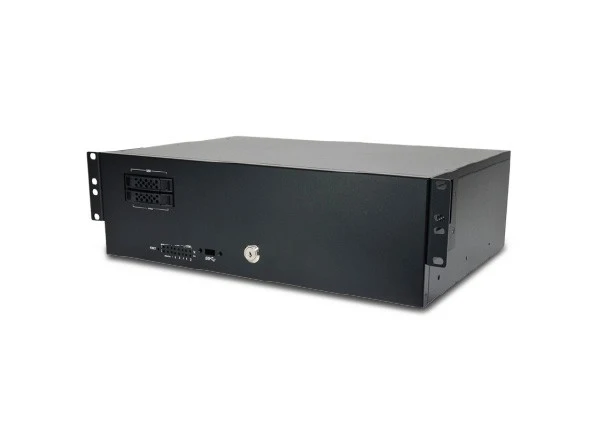

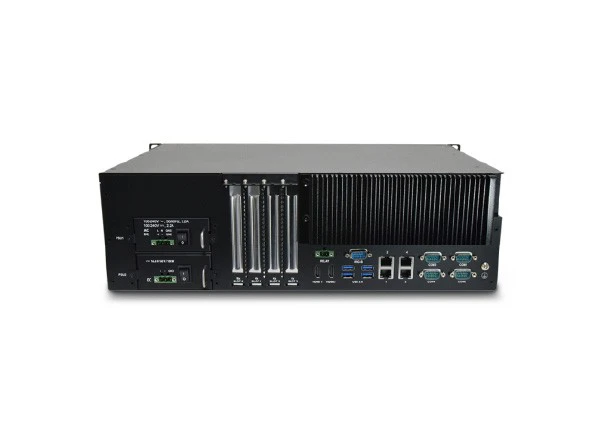

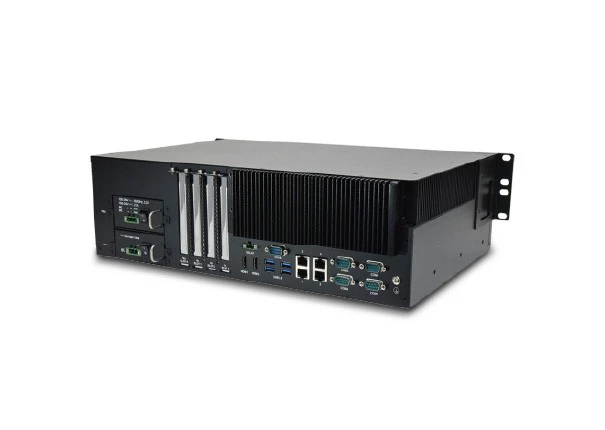

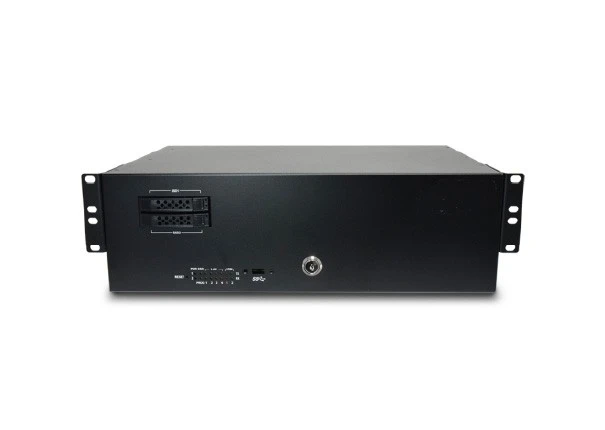

LEC-3340

IEC 61850-3 Compliant 3U Rackmount Controller System for Power Substation

LANNER LEC-3300 Series

LEC-3340

IEC 61850-3 Compliant 3U Rackmount Controller System for Power Substation

Key Specifications

  • IEC 61850-3 and IEEE 1613 certified PC
  • Intel® Xeon® W-11000 series CPU (Tiger Lake H)
  • 2x SO-DIMM DDR4 ECC memory up to 64GB
  • 4x 2.5GbE RJ45,1x PCIe x16, 3x PCIe x4
  • 5x USB, 2x HDMI, 2x isolated COM ports
  • 2 or 3x 2.5”swappable drive bays (by SKU)
  • Dual power inputs
  • Wide temperature range -40°C~70°C

No description available for this product.

Specification Value
System Processor Intel® Xeon® W-11865MLE/11555MLE/11155MLE/W-11555MRE
Frequency 1.5GHz / 1.9GHz / 1.8GHz/ 2.6GHz
Core Number 8 / 6 / 4 core
BIOS AMI SPI Flash BIOS
Chipset Intel® RM590
Memory 2 x 260-pin SODIMM DDR4 ECC Up to 64 GB
Storage SATA 2 or 3x 2.5” Swappable HDD/SSD drive bay
PCIe; 1x PCIe x4 M.2 2280
RAID RAID0,1/RAID0,1,5(by SKU)
Watchdog timer 256 level time interval system reset, software programmable
TPM TPM 2.0 Onboard
OS Support Windows Windows 11, Windows 10 Embedded,Windows Server 2022
Linux Ubuntu 22.10
Graphic Controller Intel HD Graphics P630
Display Interface 2x HDMI
I/O Serial Port 4 x DB9 Male (COM1/COM2/COM3/COM4) onboard with isolation supports
software selectable RS-232/422/485
LAN 4x 2.5GbE RJ45 ports1x IRIG-B Intel® I226IT Controller
Speed Either 2500 Mbps or 1000 Mbps
USB 5x USB 3.0 type A (rear USB with key lock)
Isolation Protection 2KV Digital Isolation
ESD Protection 15KV ESD Protection
Expansion PCIe 1 x PCIe x16, 3 x PCIe x4 slotsWatchdog Timer
Power Support Dual Power Module 100 - 240 VAC (Single)
16.6 -160 VDC (Single)
100 - 240 VAC/VDC (Combo)
Environment Operating Temperature -40ºC ~ 70ºC
Storage Temperature -40ºC ~ 85ºC
Relative Humidity 5% ~ 95%, non-condensing
Protection Degree IP30
Mechanical Dimension (W x D x H) 438 x 300.1 x 131.8 mm
Construction Aluminum + Steel
Weight 8.5 kg
Mounting Rackmount
Certification EMC CE, FCC ClassA
Safety CB, UL (w/o SKU H)
Electrical Substations IEC 61850-3, IEEE 1613
