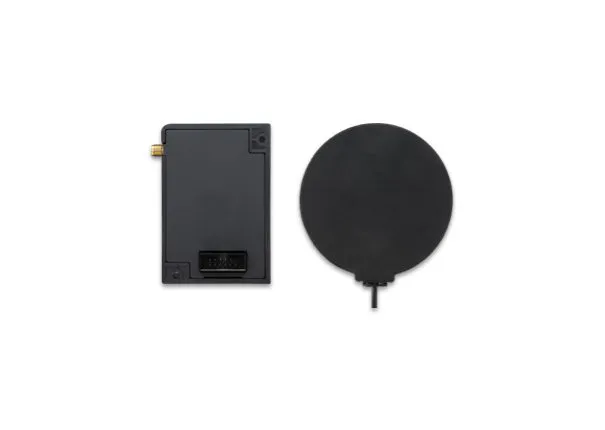

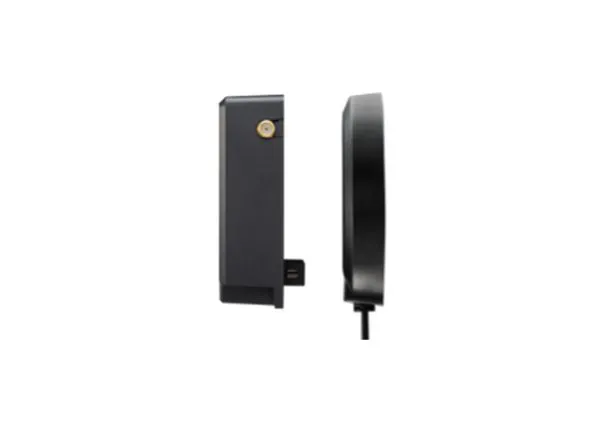

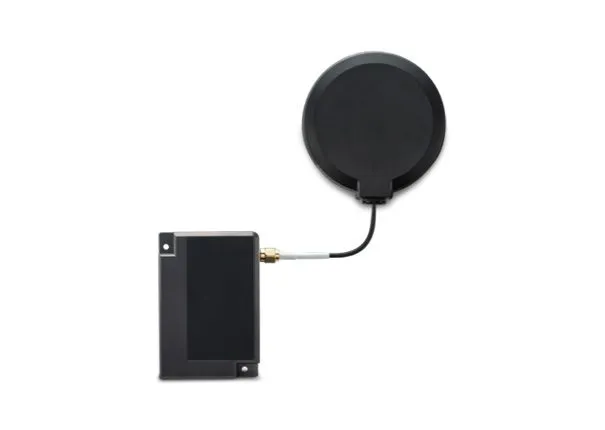

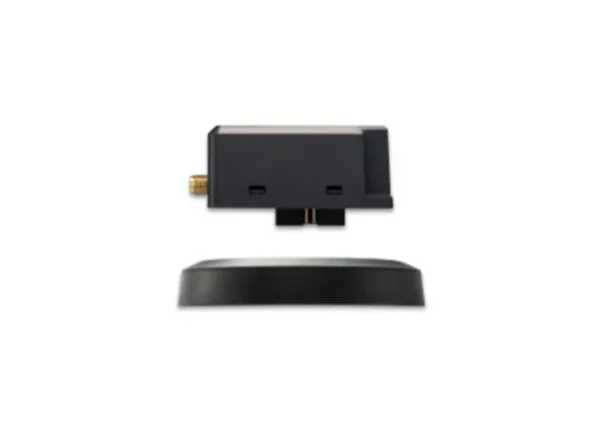

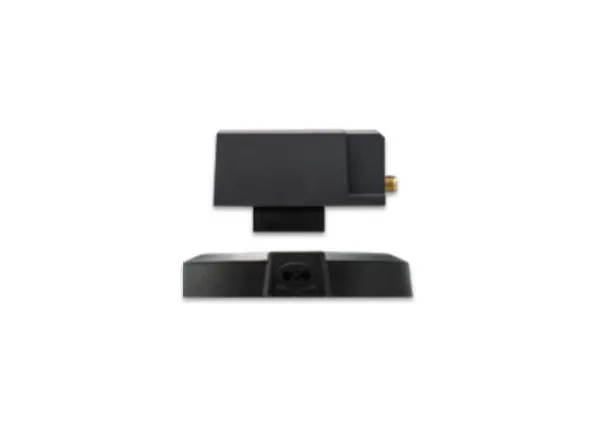

WiFi Expansion Module
| Specification | Value |
|---|---|
| WiFi | IEEE 802.11 b/g/n802.11b: max 19.76 dBm802.11g: max 19.93 dBm802.11n: max 19.99 dBm |
| SMA Female Connector | 1 |
| Male Connector to HMI | 1 |
| Input Power | 5VDC |
| Power Consumption | 900mA@5VDC (powered by HMI) |
| Voltage Resistance | 500VAC (1 min.) |
| Isolation Resistance | Exceed 50MΩ at 500VDC |
| Enclosure | Plastic |
| Dimensions WxHxD | 54.5 x 80 x 24.1 mm |
| Weight | Approx. 80 g |
| Mount | HMI connector + diagonal screw fastening |
| Protection Structure | M02: IP20 CompliantAntenna: IP66 Compliant |
| Storage Temperature | -20° ~ 60°C (-4° ~ 140°F) |
| Operating Temperature | 0° ~ 55°C (32° ~ 131°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Altitude | 3,000 m |
| Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
| CE | CE marked |
| UL | cULus Listed |
