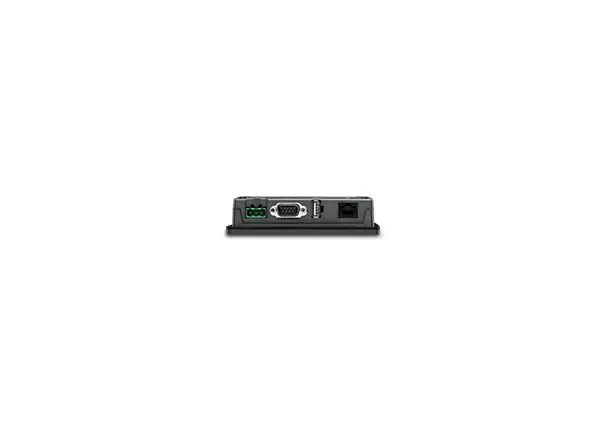

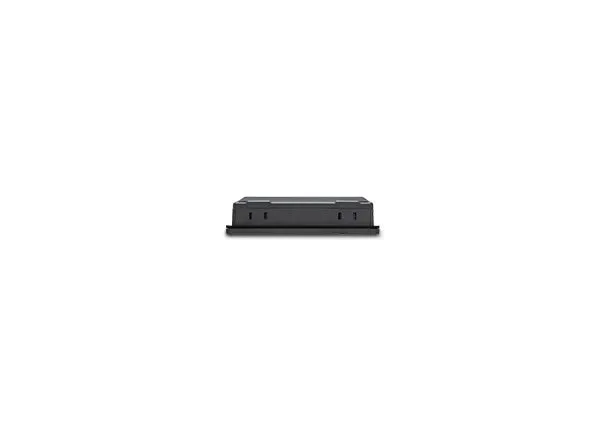

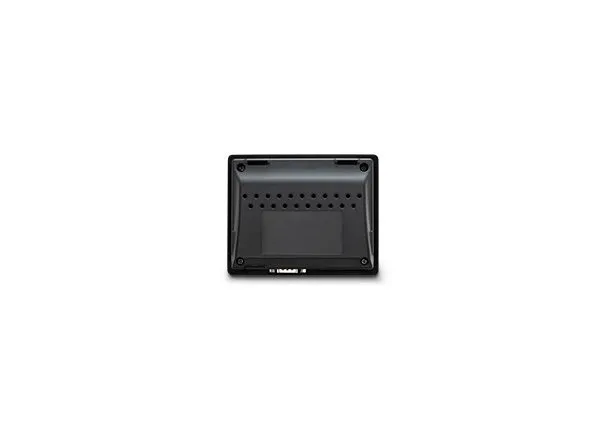

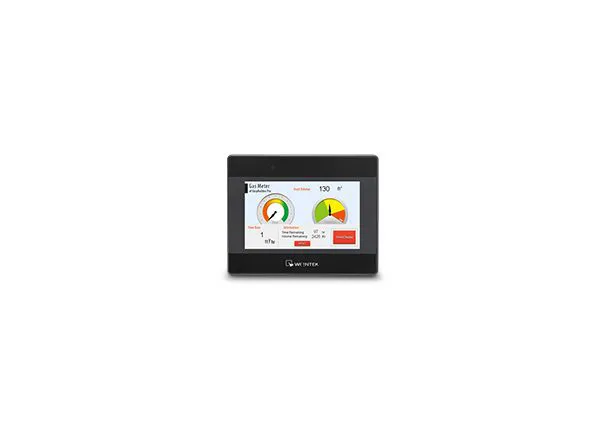

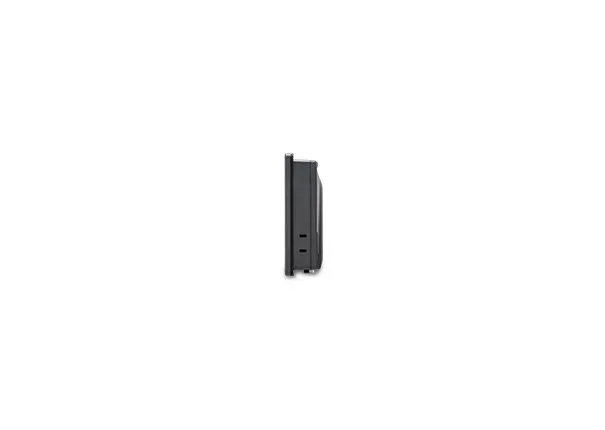

HMI with 4.3" TFT Display
| Specification | Value |
|---|---|
| Display | 4.3" TFT |
| Resolution | 480 x 272 |
| Brightness (cd/m2) | 400 |
| Contrast Ratio | 500:1 |
| Backlight Life Time | 30,000 hrs. |
| Colors | 16.7M |
| LCD View Angle (T/B/L/R) | 50/70/70/70 |
| Pixel Pitch (mm) | 0.198(H) x 0.198(V) |
| Type | 4-wire Resistive Type |
| Accuracy | Active Area Length(X)±2%, Width(Y)±2% |
| Flash | 256 MB |
| RAM | 128 MB |
| CPU | Dual-core RISC |
| USB Host | USB 2.0 x 1 |
| Ethernet Port | 10/100 Base-T x 1 |
| COM Port | COM1: RS-232/RS-485 2W/4W,COM3: RS-485 2W |
| RS-485 Dual Isolation | N/A |
| CAN Bus | N/A |
| Audio Output | N/A |
| Input Power | 24±20% VDC |
| Power Isolation | Built-in |
| Power Consumption | 350mA@24VDC |
| Voltage Resistance | 500VAC (1 min.) |
| Isolation Resistance | Exceed 50MΩ at 500VDC |
| Enclosure | Plastic |
| Dimensions WxHxD | 128 x 102 x 32 mm |
| Panel Cutout | 119 x 93 mm |
| Weight | Approx. 0.25 kg |
| Mount | Panel mount |
| PCB Coating | N/A |
| Protection Structure | NEMA4 / IP65 Compliant Front Panel |
| Storage Temperature | -20° ~ 60°C (-4° ~ 140°F) |
| Operating Temperature | 0° ~ 55°C (32° ~ 131°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Altitude | 3,000 m |
| Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
| CE | CE marked |
| UL | N/A |
| Weincloud | EasyAccess 2.0 (Optional) |
