APLEX / INDUSTRIAL PCS AND GPU COMPUTING

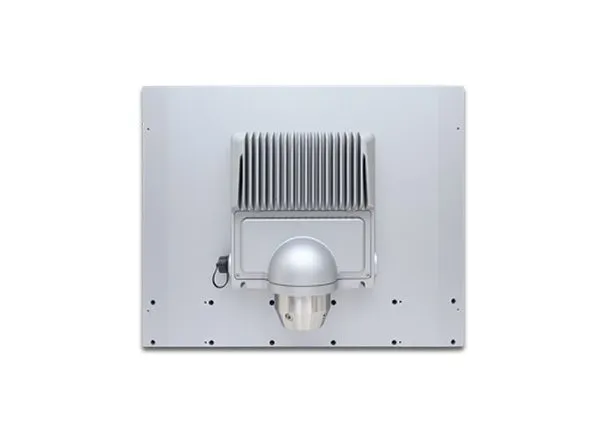

ABOS-916DP (Bottom)

15.6" IP65 Full Sealed Button-Integrated Arm mount Panel PC

APLEX ABOS Series

ABOS-916DP (Bottom)

15.6" IP65 Full Sealed Button-Integrated Arm mount Panel PC

Key Specifications

15.6" Full HD TFT-LCD
IP65 Full Sealed with Swing Arm kit
Intel 13th/12th Gen. (Raptor Lake)/(Alder Lake) Processors
16:9 Widescreen with P-CAP Multi-touch Control
RAFI Built-in Functional Buttons for Intuitive Operation
Gap-free Sealing and Slim Front Frame Architecture at Front Bezel
Power Input : DC 9-36V
Available with Configurable Button Area for the Installation of Hard-wired Elements
Bottom Mount, VESA mount

The ABOS-916DP is a high-performance 15.6" Full HD industrial panel PC powered by Intel® 13th/12th Gen processors, designed for demanding automation and machine control applications. Featuring an IP65 fully sealed front, projected capacitive multi-touch display, and RAFI functional buttons for intuitive operation, it delivers reliable performance in harsh industrial environments. Its slim gap-free bezel design, wide 9–36V DC power input, configurable button area, and flexible VESA or bottom mounting options

Specification	Value
Display
Display Type	15.6" TFT-LCD
Max. Resolution	1920 x 1080
Max. Color	16.7M
Luminance	(cd/m2) 500
Viewing angle	(H/V) 178(H)/178(V)
Contrast Ratio	1000:1
Backlight Lifetime	50,000 hrs
System
Processor	Intel Core i3-1215U, 2C+4A, up to 4.4GHz (P-Core) 3.3GHz (E-Core), 15W-55W
Memory	1 x DDR5-4800MHz SO-DIMM (Non-ECC) sockets, up to 48GB
BIOS	AMI
TPM	TPM 2.0
Operating System
OS Support	Windows 10 IoT LTSC, Windows 11 IoT, Ubuntu 24.04 (Linux Kernel 5.15)
I/O Connector
USB	2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A, 2 x USB 2.0 Type-A
Serial / Parallel	1 x RS-232(default)/422/485 select via BIOS, pin9 RI(default)/5V/12V select via jumper, DB9 (COM1)
HDMI	1 x HDMI, 4096x2304@60Hz
LAN	1 x Intel I219LM, GbE LAN, RJ-45
Power	1 x 3-pin DC Power Input, Terminal Block / 1 x Power Button with Light
Front I/O and Buttons
Front I/O and Buttons	1 x Emergency Button
Key Switch	1 x Key Switch (for option)
Push Button	Default: 1 x Blue(reset) / 1 x Red(stop) / 1 x Green(start)/ Optional: 3 x Black(self-defined)
USB Input	1 x USB 2.0 Type-A (water proof by Front)
Storage
SSD/HDD	1 x M.2 M-Key 2280 for SSD (PCIe 3.0 x4)
Touch
Type	Projected Capacitive Touch
Interface	USB
Light Transmission(%)	over 90%
Power
Power Input	DC 9~36V
Power Consumption	TBD
Environment
Operating Temp.	0˚ C ~ 50˚ C
Storage Temp.	-30°C ~ 70°C
Humidity	10 to 95%@ 40˚C, non-condensing
Vibration	IEC 60068-2-64 1G/ 5~500Hz (Random)/ Operation
Shock	IEC 60068-2-27 15G Peak Acceleration (11 msec. Duration)/ Operation
Certificate	Compliance CE/FCC/UKCA
Mechanical
Construction	Aluminum
Dimension	(WxHxD) 409.9(W) x 341.1(H) x 130(D) mm
Weight	16.5Kg
Mounting	Swing Arm Mount (Default)/bottom mounting with Stand *support Rittal CP-40
IP Rating	IP65 via Using CP40 to Install Other Mounting Devices
Optional Accessary
Handles	Left-Right Handle
Holder	Keyboard Holder

Datasheet

File Name	Release Date	Download
ABOS-916DP_Bottom.pdf	—	Download
