ABOS-921DP

21.5" IP65 Full Sealed Button-Integrated Arm mount Panel PC

APLEX ABOS Series

ABOS-921DP

21.5" IP65 Full Sealed Button-Integrated Arm mount Panel PC

Key Specifications

  • 21.5” Full HD TFT-LCD
  • IP65 Full Sealed with Swing Arm kit
  • Intel 13th/12th Gen. (Raptor Lake)/(Alder Lake) Processors
  • 16:9 Widescreen with P-CAP Multi-touch Control
  • RAFI Built-in Functional Buttons for Intuitive Operation
  • Gap-free Sealing and Slim Front Frame Architecture at Front Bezel
  • Power Input : DC 9-36V
  • Available with Configurable Button Area for the Installation of Hard-wired Elements
  • Bottom Mount, VESA mount
The ABOS-921DP is a high-performance 21.5" Full HD industrial panel PC powered by Intel® 13th/12th Gen processors, designed for demanding automation and machine control applications. Featuring an IP65 fully sealed front, projected capacitive multi-touch display, and RAFI functional buttons for intuitive operation, it delivers reliable performance in harsh industrial environments. Its slim gap-free bezel design, wide 9–36V DC power input, configurable button area, and flexible VESA or bottom mounting options
Specification Value
Display Display Type 21.5" TFT-LCD
Max. Resolution 1920 x 1080
Max. Color 16.7M
Luminance(cd/m2) 250
Viewing angle (H/V) 178(H)/178(V)
Contrast Ratio 1000:1
Backlight Lifetime 30,000 hrs
System Processor Intel Core i3-1215U, 2C+4A, up to 4.4GHz (P-Core) 3.3GHz (E-Core), 15W-55W;Intel Core i5-1235U,2C+8A, up to 4.4GHz (P-Core) 3.3GHz (E-Core), 15W-55W;Intel Core i7-1255U,2C+8A, up to 4.7GHz (P-Core) 3.5GHz (E-Core), 15W-55W;Intel Core i3-1315UE,2C+4A, up to 4.5GHz (P-Core) 3.3GHz (E-Core), 15W-55W;Intel Core i5-1335UE,2C+8A, up to 4.5GHz (P-Core) 3.3GHz (E-Core), 15W-55W;Intel Core i7-1365UE,2C+8A, up to 4.9GHz (P-Core) 3.7GHz (E-Core), 15W-55W
Memory 1 x DDR5-4800MHz SO-DIMM (Non-ECC) sockets, up to 48GB
BIOS AMI
TPM TPM 2.0
Operating System OS Support Windows 10 IoT LTSC, Windows 11 IoT, Ubuntu 24.04 (Linux Kernel 5.15)
I/O Connector USB 2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A, 2 x USB 2.0 Type-A
Serial / Parallel 1 x RS-232(default)/422/485 select via BIOS, pin9 RI(default)/5V/12V select via jumper, DB9 (COM1)
HDMI 1 x HDMI, 4096x2304@60Hz
LAN 1 x Intel I219LM, GbE LAN, RJ-45
Power 1 x 3-pin DC Power Input, Terminal Block / 1 x Power Button with Light
Front I/O and Buttons Front I/O and Buttons 1 x Emergency Button
Key Switch 1 x Key Switch (for option)
Push Button Default: 1 x Blue(reset) / 1 x Red(stop) / 1 x Green(start)/ Optional: 3 x Black(self-defined)
USB Input 1 x USB 2.0 Type-A (water proof by Front);1 x USB 2.0 Type-A (water proof by Rear)
Storage SSD/HDD 1 x M.2 M-Key 2280 for SSD (PCIe 3.0 x4);1 x 2.5" HDD Bay
Touch Type Projected Capacitive Touch
Interface USB
Light Transmission(%) over 90%
Power Power Input DC 9~36V
Power Consumption TBD
Environment Operating Temp. 0˚ C ~ 50˚ C
Storage Temp. -30°C ~ 70°C
Humidity 10 to 95%@ 40˚C, non-condensing
Vibration IEC 60068-2-64 1G/ 5~500Hz (Random)/ Operation
Shock IEC 60068-2-27 15G Peak Acceleration (11 msec. Duration)/ Operation
Certificate Compliance CE/FCC/UKCA
Mechanical Construction Aluminum
Dimension(WxHxD) 545.8(W) x 418(H) x 135(D) mm
Weight 19Kg

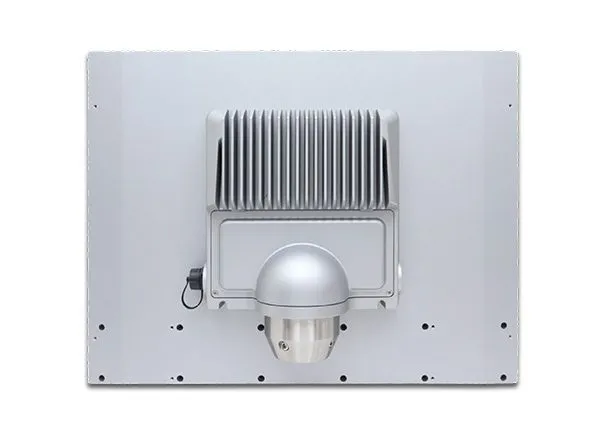

Mounting Swing Arm Mount (Default)/bottom mounting with Stand *support Rittal CP-40
IP Rating IP65 via Using CP40 to Install Other Mounting Devices
Optional Accessary Handles Left-Right Handle
Holder Keyboard Holder
