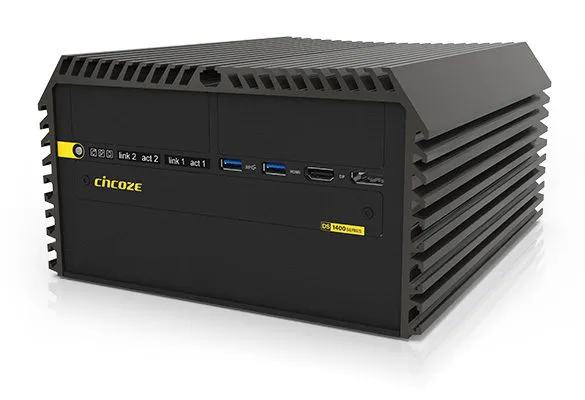

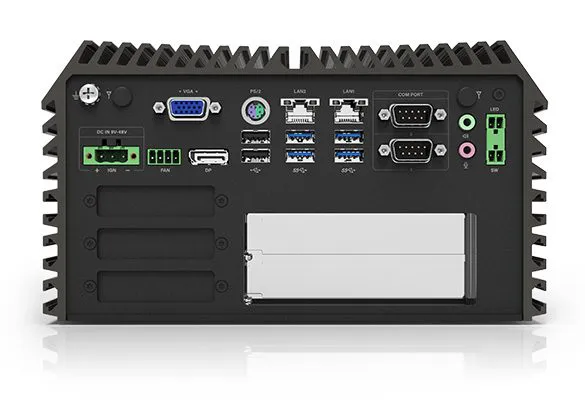

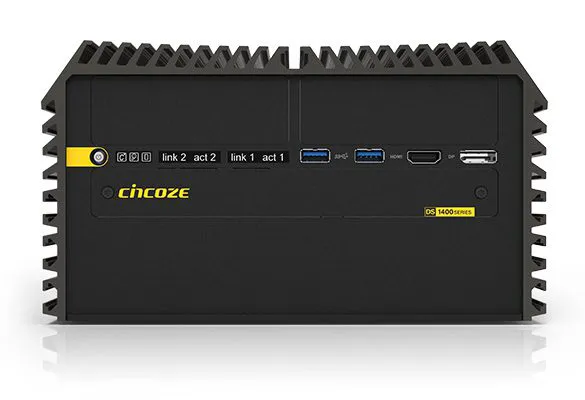

High Performance & PCIe Expandable Fanless PC
| Specification | Value |
|---|---|
| System | |
| Processor | Bartlett Lake-S Intel® Core Series 2 P-Core Only CPU Bartlett Lake-S Intel® Core Series 2 Hybrid CPU 14th Generation Intel® Raptor Lake-S Refresh Series P-Core i9/i7/i5/i3 Only CPU 14th Generation Intel® Raptor Lake-S Refresh Series i9/i7/i5 Hybrid CPU 13th Generation Intel® Raptor Lake-S Series P-Core i3 CPU 13th Generation Intel® Raptor Lake-S Series i9/i7/i5 Hybrid CPU 12th Generation Intel® Alder Lake-S Series P-Core CPU 12th Generation Intel® Alder Lake-S Series Hybrid CPU |
| Chipset | Intel R680E Chipset |
| Memory | • 2x DDR5 SO-DIMM sockets, support Un-buffered and ECC Type memory, up to 96GB. - Core™ i9/i7: Support 5600/4800 MHz with Single Rank memory and 5200/4800 MHz with Dual Rank memory. - Core™ i5/i3/Pentium®/Celeron®/Intel® Processor: Support 4800 MHz. |
| BIOS | AMI BIOS |
| Graphics | |
| Graphics Engine | Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5 Integrated Intel® UHD Graphics 730: Core™ i3 Integrated Intel® UHD Graphics 710: Pentium®/Celeron® |
| Maximum Display Output | Supports Quad Independent Display |
| VGA | 1x VGA Connector : 1920 x 1200@60Hz |
| DP | 2x DP Connector : 4096 x 2304@60Hz * Verified maximum DP resolution: 3840x2160 @ 60Hz - |
| HDMI® | 1x HDMI® Connector : 4096x2160 @ 30Hz * Verified maximum resolution: 3840x2160 @ 30Hz |
| Audio | |
| Audio Codec | Realtek® ALC888, High Definition Audio |
| Line-out | 1 x Line-out, Phone Jack 3.5mm |
| Mic-in | 1 x Mic-in, Phone Jack 3.5mm |
| I/O | |
| LAN | 2 x GbE LAN, RJ45 - GbE1: Intel® I219 - GbE2: Intel® I210 |
| COM | 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 |
| USB | 2 x USB 3.2 Gen2x1 (10Gbps), Type A 4 x USB 3.2 Gen1x1 (5Gbps), Type A 2 x USB 2.0 (480Mbps), Type A |
| PS/2 | 1 x PS/2, 6 Pin Mini-DIN Female Connector |
| Storage / Expansion | |
| SSD / HDD | 1x 2.5" Front Accessible SATA HDD/SSD Bay Supporting Hot Swap Function (SATA 3.0) 1x 2.5” Internal SATA HDD/SSD Bay (SATA 3.0) |
| mSATA | 3x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket) |
| M.2 SSD | 1x M.2 Key M Type 2280 Socket, Support PCIe Gen3 x4 NVMe SSD or SATA SSD (SATA 3.0) |
| RAID | Support RAID 0/1/5/10 |
| Expansion | |
| PCI Express | 2 x PCI/PCIe Expansion Slot with Optional Riser Card * Supports maximum dimensions of add-on card (L x H)：235 x 124 mm * Supports GPU card up to 130W |
| Mini PCI Express | 2x Full-size Mini PCIe Socket (mPCIe / USB 2.0 / mSATA), Support Storage/Add-on Card Expansion 1x Full-size Mini PCIe Socket (mPCIe / USB 3.2 / mSATA), Support 5G/GNSS/Storage/Add-on Card Expansion |
| SIM Socket | 2 x SIM Socket |
| CMI (Combined Multiple I/O) Interface | 2 x High Speed CMI Interface for optional CMI Module Expansion 2 x Low Speed CMI Interface for optional CMI Module Expansion |
| CFM (Control Function Module) Interface | 1 x CFM IGN Interface for optional CFM-IGN Module Expansion |
| Other Function | |
| External FAN Connector | 1 x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS) |
| Power Ignition Sensing | Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module) |
| Clear CMOS Switch | 1 x Clear CMOS Switch |
| Reset Button | 1 x Reset Button |
| Instant Reboot | Support 0.2sec Instant Reboot Technology |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset |
| Power | |
| Power Button | 1 x ATX Power On/Off Button |
| Power Mode Switch | 1 x AT/ATX Mode Switch |
| Power Input | 9 - 48VDC, 3-pin Terminal Block |
| Remote Power On/Off | 1 x Remote Power On/Off, 2-pin Terminal Block |
| Remote Power LED | 1 x Remote Power LED, 2-pin Terminal Block |
| Max. Power Consumption | 35W CPU: 163W 65W CPU: 262.8W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during burn-in testing |
| Inrush Current (Peak) | 35W CPU: 5.812 A@24V 65W CPU: 5.983 A@24V |
| Operating System | |
| Windows | Windows®11, Windows®10 Linux; Ubuntu Desktop 22.04 LTS |
| Mechanical | |
| Dimension ( W x D x H ) | 227 x 261 x 128 mm |
| Weight Information | 5.44 KG |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting | Wall Mount |
| Physical Design | Fanless Design Cableless Design Jumper-less Design Unibody Design |
| Reliability & Protection | |
| Reverse Power Input Protection | Yes |
| Over Voltage Protection | Protection Range: 51~58V; Protection Type: shut down operating voltage, re-power on at the preset level to recover |
| Over Current Protection | 15A |
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation |
| MTBF | 371,274 Hours - Database: Telcordia SR-332 Issue 3, Method 1, Case 3 |
| Environment | |
| Operating Temperature | 35W TDP Processor: -40°C to 70°C (-40°F to 158°F) 45W TDP Processor: -40°C to 60°C (-40°F to 140°F) (With External Fan Kit) 65W TDP Processor: -40°C to 50°C (-40°F to 122°F) (With External Fan Kit) - With extended temperature peripherals; Ambient with air flow - According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) |
| Shock | MIL-STD-810G |
| Vibration | MIL-STD-810G |
| EMC | CE, UKCA, FCC, ICES-003 Class A EN 50155 (EN 50121-3-2 Only) |
| EMI | CISPR 32 Conducted & Radiated: Class A EN/BS EN 50121-3-2 Conducted & Radiated: Class A EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A EN/BS EN61000-3-3 Voltage fluctuations & flicker FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A |
| Safety | UL, cUL, CB, IEC, EN 62368-1 |
