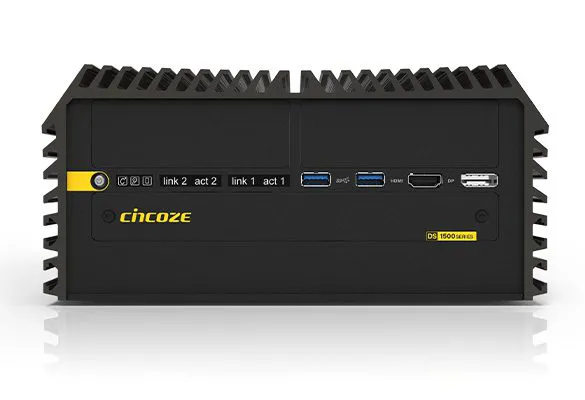

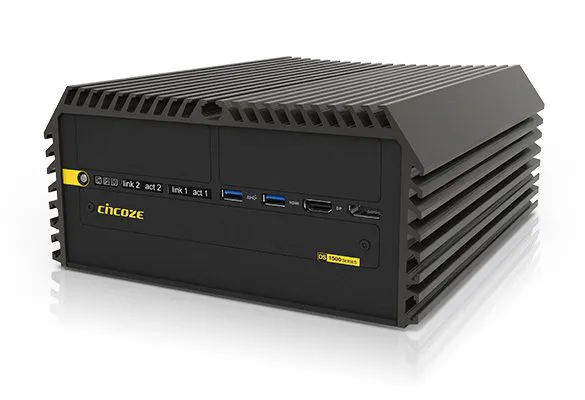

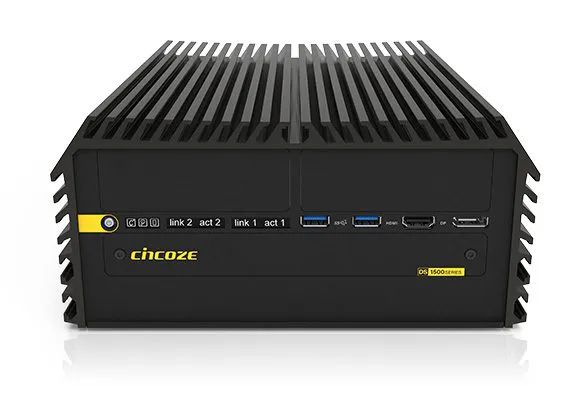

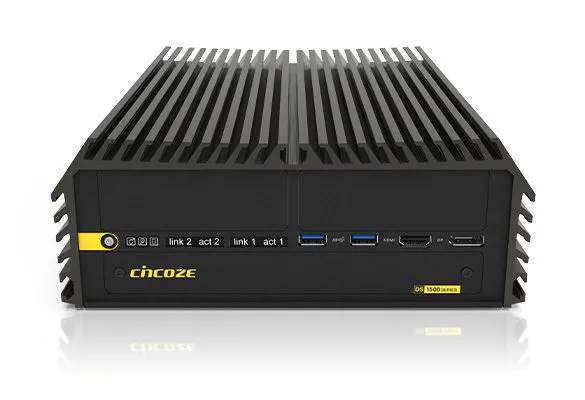

High Performance & PCIe Expandable Fanless PC
| Specification | Value |
|---|---|
| System | |
| Processor | Arrow Lake-S Ultra 200S Series CPU Intel® Core™ Ultra 9 285 24 Cores Up to 5.6 GHz, TDP 65W Intel® Core™ Ultra 9 285T 24 Cores Up to 5.4 GHz, TDP 35W Intel® Core™ Ultra 7 265 20 Cores Up to 5.3 GHz, TDP 65W Intel® Core™ Ultra 7 265T 20 Cores Up to 5.3 GHz, TDP 35W Intel® Core™ Ultra 5 245 14 Cores Up to 5.1 GHz, TDP 65W Intel® Core™ Ultra 5 245T 14 Cores Up to 5.1 GHz, TDP 35W Intel® Core™ Ultra 5 225 10 Cores Up to 4.9 GHz, TDP 65W Intel® Core™ Ultra 5 225T 10 Cores Up to 4.9 GHz, TDP 35W |
| Chipset | Intel W880 Chipset |
| Memory | • 2x DDR5 SODIMM/CSODIMM Socket, Support Un-buffered and ECC Type - Ultra 9 / 7: Supports Up to 6400MHz, 96GB - Ultra 5: Supports Up to 5600MHz, 96GB * CSODIMM is supported by project |
| BIOS | AMI BIOS |
| Graphics | |
| Graphics Engine | Integrated Intel® Xe LPG Graphics |
| Maximum Display Output | Supports Quad Independent Display |
| VGA | 1x VGA Connector : 1920 x 1200@60Hz |
| DP | 2x DP Connector : 4096 x 2304@60Hz - Support cable switch HDMI® 4096 x 2160@30Hz * Verified maximum resolution: 3840 x 2160@60Hz |
| HDMI® | 1x HDMI® Connector : 4096 x 2160@30Hz * Verified maximum resolution: 3840 x 2160@30Hz |
| Audio | |
| Audio Codec | Realtek® ALC888, High Definition Audio |
| Line-out | 1 x Line-out, Phone Jack 3.5mm |
| Mic-in | 1 x Mic-in, Phone Jack 3.5mm |

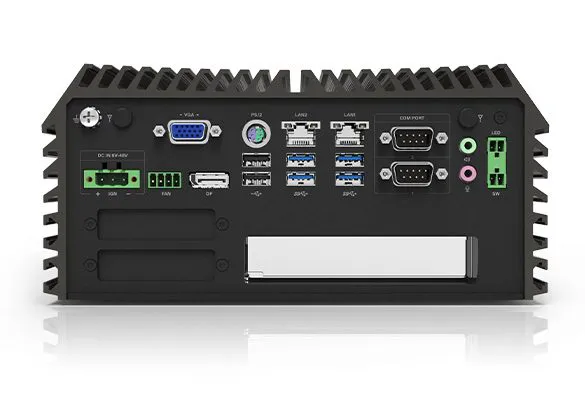

| I/O | |
| LAN | 1x 2.5 GbE LAN, RJ45 - GbE1: Intel® I226 1x GbE LAN, RJ45 - GbE2: Intel® I219 |
| COM | 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 |
| USB | 2x 10Gbps USB 3.2 Gen2x1, Type A 4x 5Gbps USB 3.2 Gen1x1, Type A 2x 480Mbps USB 2.0, Type A |
| PS/2 | 1 x PS/2, 6 Pin Mini-DIN Female Connector |
| Storage / Expansion | |
| 2.5" SSD / HDD | 1x 2.5" Front Accessible SATA HDD/SSD Bay ( SATA 3.0 ) 1x 2.5" Internal SATA HDD/SSD Bay ( SATA 3.0 ) |
| M.2 Key B Socket | 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 4x2 / USB3.2 Gen2x1 / SATA), Support 5G / GNSS / Storage / Add-on Card Expansion ; 2x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / USB2.0 / SATA), Support GNSS / Storage / Add-on Card Expansion |
| M.2 Key M Socket | 1x M.2 Key M Type 2280 Socket (PCIe Gen3 x4 / SATA), Support Storage / Add-on Card Expansion |
| PCI Express | N/A |
| SIM | 2x SIM Socket |
| CMI (Combined Multiple I/O) Socket | 2x High Speed CMI Interface for optional CMI Module Expansion 2x Low Speed CMI Interface for optional CMI Module Expansion |
| CFM (Control Function Module) Socket | 1x CFM IGN Interface for optional CFM-IGN Module Expansion 1x CFM-TPM Interface for optional CFM-TPM Module Expansion |
| Other Function | |
| RAID | Support RAID 0/1/5/10 |
| External FAN Connector | 1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS) |
| Power Ignition Sensing | Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module) |
| TPM | Support Discrete TPM2.0 (with Optional CFM Module) |
| Clear CMOS Switch | 1x Clear CMOS Switch |
| Reset Button | 1x Reset Button |
| Instant Reboot | Support 0.2sec Instant Reboot Technology |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset |
| Antenna Holes | 2 |
| Power | |
| Power Button | 1 x ATX Power On/Off Button |
| Power Mode Switch | 1 x AT/ATX Mode Switch |
| Power Input | 9 - 48VDC, 3-pin Terminal Block |
| Remote Power On/Off | 1 x Remote Power On/Off, 2-pin Terminal Block |
| Remote Power LED | 1 x Remote Power LED, 2-pin Terminal Block |
| Max. Power Consumption | 35W CPU: 163W 65W CPU: 262.8W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during burn-in testing |
| Inrush Current (Peak) | 35W CPU: 5.812 A@24V 65W CPU: 5.983 A@24V |
| Operating System | |
| Windows | Windows®11, Windows®10 Linux; Ubuntu 24.04 |
| Mechanical | |
| Dimension ( W x D x H ) | 227x261x88 mm |
| Weight Information | 4.9 KG |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting | Wall Mount |
| Physical Design | Fanless Design Cableless Design Jumper-less Design Unibody Design |
| Reliability & Protection | |
| Reverse Power Input Protection | Yes |
| Over Voltage Protection | Protection Range: 51~58V; Protection Type: shut down operating voltage, re-power on at the preset level to recover |
| Over Current Protection | 15A |
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation |
| MTBF | 307,224 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 |
| Environment | |
| Operating Temperature | 35W TDP Processor: -40°C to 60°C (-40℉ to 140℉) 65W TDP Processor: -40°C to 50°C (-40℉ to 122℉) With External Fan Kit - With extended temperature peripherals; Ambient with air flow - According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -40°C to 85°C (-40℉ to 185℉) |
| Relative Humidity | 95%@60°C (non-Condensing) |
| Shock | MIL-STD-810H |
| Vibration | MIL-STD-810H |
| EMC | CE, UKCA, FCC, ICES-003 Class A |
| EMI | CISPR 32 Conducted & Radiated: Class A ;EN/BS EN 50121-3-2 Conducted & Radiated: Class A; EN/BS EN IEC 61000-3-2 Hamonic current emissions: Class A; EN/BS EN61000-3-3 Voltage fluctuations & flicker; FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A EMS; EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m EN/IEC 61000-4-4 EFT (with optional PPM module): AC Power: 2 kV, DC Power: 1 kV,Signal: 2 kV EN/IEC 61000-4-5 Surges: AC Power: 2 kV EN/IEC 61000-4-6 CS: 10V EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz |
| Railway | EMC: EN 50155: 2021 Clause 4.4.6, 13.4.9 - EN 50121-1 : 2017 - EN 50121-3-2: 2016 + A1: 2019 |
| Fire Protection | EN 45545-2 |
| Safety | UL, cUL, CB, IEC, EN 62368-1 |
