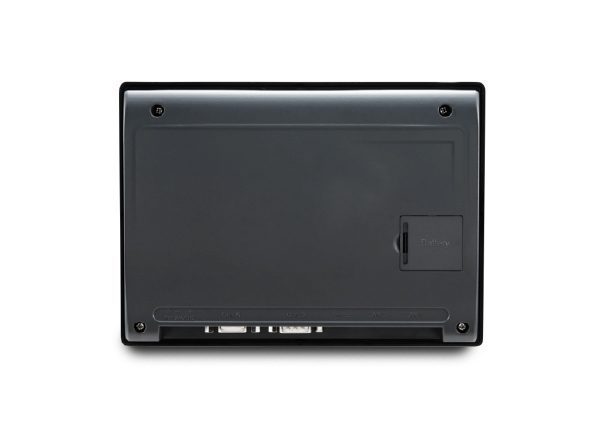

HMI with 7" TFT Display
| Specification | Value |
|---|---|
| Display | |
| Display | 7” TFT |
| Resolution | 800 × 480 |
| Brightness (cd/m2) | 400 |
| Contrast Ratio | 800:1 |
| Backlight Life Time | > 30,000 hrs. |
| Colors | 16.7 M |
| LCD Viewing Angle (T/B/L/R) | 80/60/80/80 |
| Pixel Pitch (mm) | 0.1926 (H) × 0.179 (V) |
| Touch Panel | |
| Type | 4-wire Resistive Type |
| Accuracy | Active Area Length (X) ± 2 %, Width (Y) ± 2 % |
| Memory | |
| FLASH | 4 GB |
| RAM | 1 GB |
| Processor | |
| CPU | Quad-core RISC |
| I/O Port | |
| Memory Card Type | N/A |
| USB Host | USB 2.0 × 1 |
| Ethernet | LAN 1: 10/100 Base-T × 1 |
| COM Port | Con.A: COM2 RS-485 2W/4W, COM3 RS-485 2W |
| WiFi | N/A |
| RS-485 Dual Isolation | N/A |
| CAN Bus | N/A |
| Audio Output | N/A |
| * Only Tx & Rx (no RTS/CTS) may be used for COM1 RS-232 when COM3 RS-232 is also used. | |
| Power | |
| Input Power | 24 ± 20 % VDC |
| Power Isolation | Built-in |
| Power Consumption | 820 mA @ 24 VDC |
| Voltage Resistance | 500 VAC (1 min.) |
| Isolation Resistance | Exceed 50 MΩ at 500 VDC |
| Mechanical | |
| Enclosure | Plastic |
| Dimensions | W×H×D 200.3 × 146.3 × 35 mm |
| Panel Cutout | 192 × 138 mm |
| Weight Approx. | 0.6 kg |
| Mount | Panel Mount |
| Environment | |
| PCB Coating | Yes |
| Protection Structure | UL Type 4X (indoor use only) / NEMA4 / IP66 Compliant Front Panel |
| Storage Temperature | -20° ~ 60°C (-4° ~ 140°F) |
| Operating Temperature | 0° ~ 55°C (32° ~ 131°F) |
| Relative Humidity | 10 % ~ 90 % (non-condensing) |
| Altitude | 3,000 m |
| Vibration Endurance | 10 to 25 Hz (X, Y, Z direction 2G 30 minutes) |
| Certificate | |
| CE | CE Marked |
| UL | cULus Listed |
| Software | |
| EasyBuilder Pro | V6.07.01 or later versions* |
| Weincloud | EasyAccess 2.0 (Optional), Dashboard (Optional) |
| CODESYS | ® Optional |
| * The minimum software requirement for MPI: EasyBuilder Pro V6.07.02. | |
| * The minimum software requirement for units labeled as cMT3072X2 (V2): EasyBuilder Pro V6.09.02. | |
| * CODESYS® is a trademark of CODESYS GmbH | |
| File Name | Release Date | Download |
|---|---|---|
| cMT3072X2-Datasheet-eng.pdf | — | Login required |
